EASTEN SCAFFOLDINGS
We are one of the leading companies in the construction support equipment. The product range offered by us can be customized to suit specific requirements of clients in most efficient manner. We use latest technology and in-depth research and development process to provide our customers high quality products. We understand your needs and provides excellent quality and durable products. with relevant IS- CODE.
ADJUSTABLE PROPS
Steel tubes are used for inner and outer of Props. Adjustment
vs safe axial load giver below for Standard type props.
Outer: 60.30 mm O.D. Inner: 48.30 mm O.D. As per IS 1161/1239
|
Prop
|
Closed
|
Extended
|
Closed
|
Extended
|
|---|---|---|---|---|
|
P1
|
1.10
|
1.75
|
3500
|
3000
|
|
P2
|
1.50
|
2.75
|
3200
|
2300
|
|
P3
|
2.00
|
3.25
|
3000
|
2200
|
|
P4
|
2.00
|
3.75
|
2900
|
2000
|
|
P5
|
3.00
|
4.65
|
2300
|
1150
|
|
P-Junior
|
2.00
|
3.10
|
1500
|
1000
|

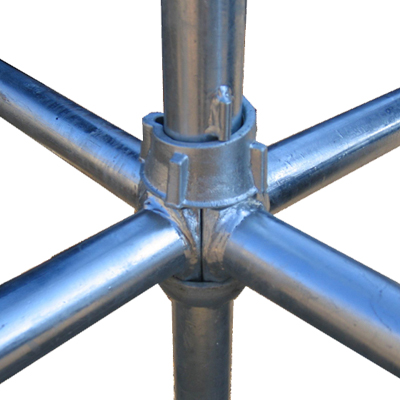

Cuplock Scaffolding System
Cuplock/Cup lock is a unique node point connection allows up to four horizontal members to be connected to a veritical members in one single action without the use of nuts and bolts or wedges. The locking device is formed by two cups. Single node point action of unique locking make ‘cuplock/Cuplock’ a fast, versatile and optimized system of scaffolding for scaffolding for construction, demolition and maintenance projects throughout the world.
Frame Scaffolding System
Our Scaffolds Frame systems has gained world wide acceptance. In addition to this, our reliable and fiducial products are widely used by our esteemed clients in domestic market. We offer principal products at reasonable prices.
A frame
H frame
Ladder Frame
Cross Braces
Frames sets
Frame Accessories
MANHOLES AND FRAMES

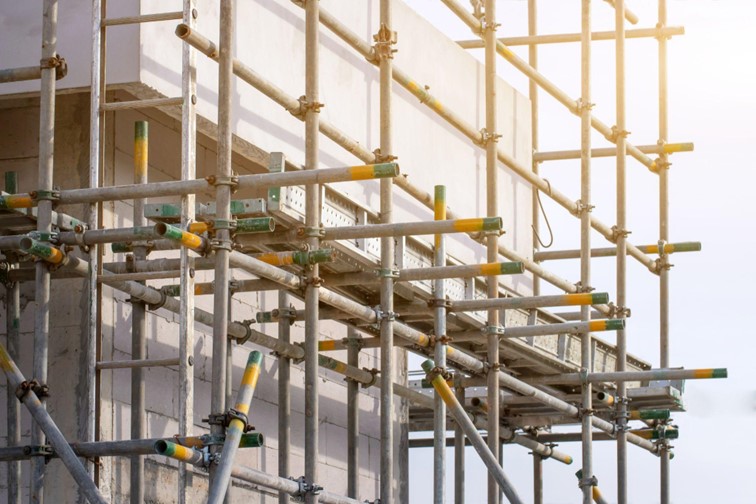

Scaffolding is a temporary structure that provides a stable platform for people to work at heights or in hard-to-reach areas. It’s often used in construction, maintenance, and repair of buildings, bridges, and other man-made structures. Scaffolding can be supported or suspended, and is made from materials such as wood, pipes, or poles. When properly constructed, scaffolding can be sturdy enough to support the weight of workers and materials. Scaffolding has many uses in India, including construction, art installations, and other applications. Conduit Enterprises are the Traders and Stockiest of SCARF FOILDINGS as per Indian Standard (IS) We offer the vast range of SCARF FOILDINGS of all size, weight, length and quality for all your needs. Feel free to choose the product from our list of offerings below according to your needs.
- Cup lock Scaffolding System
- Cup lock Vertical Standard
- Scaffolding Prop
- Horizontal Ledger
- Base Jack
- U Head Jack
- Shuttering Plates
- Scaffolding Chali
- Scaffolding Bottom Cup
- Scaffolding Base Plate
- Scaffolding Couplers
- Joint Pin
- Scaffolding Top Cup
- Prop Nuts
- Ledger Blades
- Jack Handle
- Jack Nut
- Wing Nut
- Prop Sleeve
