SURFACE BOX

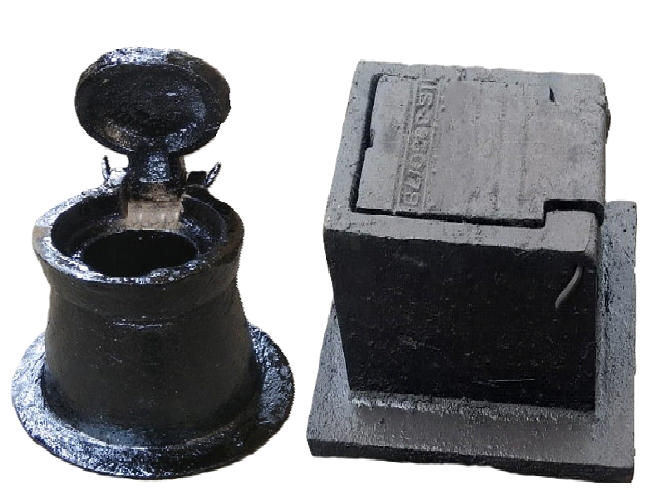

Cast iron (CI) surface boxes are used to protect valves from damage and are installed over valves to make them easier to operate. They are made from premium-grade cast iron and are used in a variety of sectors, including waterline sectors and steel plants. CI surface boxes are available in different sizes and can have features such as: Durability, Fine finish, Perfect strength, Rust proof, High strength, long life, Smooth finish, and Excellent resistance to abrasion.
- Cast Iron Road Surface Boxes as per IS:3950
- Cast Iron Surface Boxes as per IS:909
- Cast Iron Valve Surface Boxes as per Customer Drawing
Conduit Enterprises are the Manufacture, Traders and Stockiest of Cast Iron (C.I.) Surface Box as per Indian Standard (IS) 3950 & 909 We offer the vast range of D.I. C.I. Fittings and Specials for all your needs. Feel free to choose the product from our list of offerings below according to your needs.
DIMENSION OF SURFACE BOX
|
WEIGHT
|
BASE O/D (B) mm
|
BASE CLEAR OPENING (B) mm
|
TOTAL HEIGHT (H) mm
|
TOP OPENING (C) mm
|
TOP COVER (LID) (C) mm
|
TOP O/D (C) mm
|
|---|---|---|---|---|---|---|
|
6 kgs. ROUND HEAD
8.5 kgs. ROUND HEAD 13 kgs. ROUND HEAD 18 kgs. ROUND HEAD 30 kgs. ROUND HEAD 13 kgs. ROUND HEAD |
205
220 250 250 300 250 |
95
152 160 145 245 160 |
225
215 240 200 300 225 |
83
72 75 175 220 105 |
105
105 103 200 237 108 |
1025
1030 135 250 260 145 |
TOLERANCE IN SIZE +/- 5MM, IN THICKNESS +/- 1MM, & IN WT. +/- 5%
DIMENSION OF SURFACE BOX
|
WEIGHT
|
BASE O/D (B) mm
|
BASE CLEAR OPENING (B) mm
|
TOTAL HEIGHT (H) mm
|
TOP OPENING (C) mm
|
TOP COVER (LID) (C) mm
|
TOP O/D (C) mm
|
|---|---|---|---|---|---|---|
|
6 kgs. ROUND HEAD
8.5 kgs. ROUND HEAD 13 kgs. ROUND HEAD 18 kgs. ROUND HEAD 30 kgs. ROUND HEAD 13 kgs. ROUND HEAD |
205
220 250 250 300 250 |
95
152 160 145 245 160 |
225
215 240 200 300 225 |
83
72 75 175 220 105 |
105
105 103 200 237 108 |
1025
1030 135 250 260 145 |
TOLERANCE IN SIZE +/- 5MM, IN THICKNESS +/- 1MM, & IN WT. +/- 5%

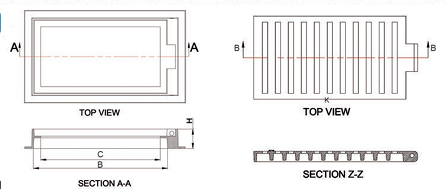

DIMENSION OF SURFACE BOX
|
SIZE
|
CLEAR OPENING (C)mm
|
OUTER BASE (B)mm
|
DEPTH (H)mm
|
COVER OUTER (K)mm
|
Wt.
|
|---|---|---|---|---|---|
|
|
130x225
125x260 |
246x360
200x340 |
180
120 |
120x245
95x250 |
35 kgs.
20 kgs. |
|
DIMENSION OF
|
35 KG SURFACE BOXES
|
20 KG SURFACE BOXES
|
|---|---|---|
|
CLEAR OPENING (C)
OUTER BASE (B) DEPTH (H) COVER OUTER (K) |
130x225 MM
246x360 MM 180 MM 120x245 MM |
125x260 MM
200x340 MM 120 MM 95x250 MM WT - 20Kgs |
